51" Hunter Coil Coating Line: CC-153

Contact us for price

orCall 1-336-597-2370

Description

Manufacturer: Fata-Hunter / New 2002

Line Design/Use: Single coat line that ran steel roofing deck

Line Speed: 200 fpm max / 61 mpm

Strip Thickness: .011 - .054" / 0.27 - 1.37 mm

Strip Width: 24 - 51.25' / 610 - 1302 mm

Material: 2.77 sq. in. max cross-section at 28,000 psi yield strength

Coil Size:
- ID - 18.5 - 24.5" / 470-622 mm
- OD - 72" max / 1829 mm
- Weight - 50,000 lbs / 22.6 mtons

Reference Coating
- Top Side: 0.5 mil dry film / 13 microns
- Bottom Side: 0.5mil dry film / 13 microns
- Coating Solids: 55% by volume

Equipment
- Uncoiler: Dual mandrel type payoffs, hydraulic expansion, 6089 lbs tension
- Entry Crop Shear
- Entry Strip Joiner
- Entry Accumulator: 79 seconds of storage @ 200 fpm
- Treatment Section: Seven stages = Clean-brush-clean-hot rinse-phosphoric acid-hot rinse-reverse osmosis rinse
- Chem Coater: Horizontal, Over/under type
- Chem Coat Dryer: Included

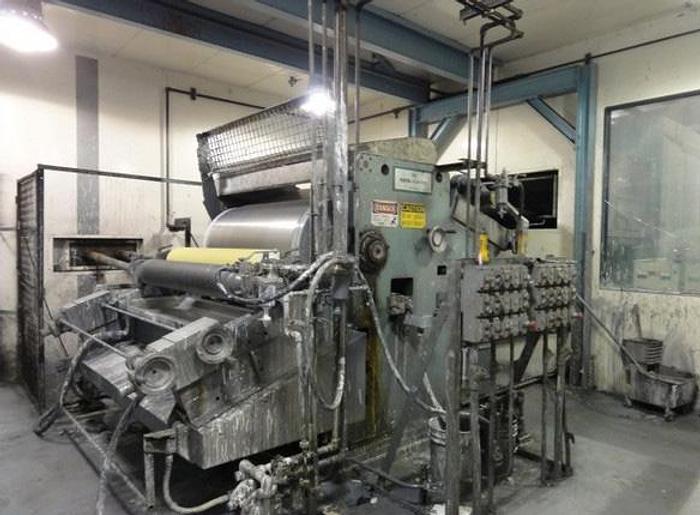

- Coater 2 roll type
- Oven
- Peak Metal Temperature (PMT) = 480 deg F / 250 deg C
- Exit Temperature = 130 deg F / 54 deg C at 24 sec dwell time at 200 fpm + quench
- Oxidizer = 1472 deg F reactor temp / 800 deg C at 0.75 sec dwell time
- Exit Accumulator = 79 seconds of storage @ 200 fpm
- Exit Crop Shear
- Recoiler One mandrel type rewind, Hydraulic expansion and push-off, 14,668 lbs tension, Belt wrapper

Footprint 400 ft L x 30 ft W x 41 ft H

Sold "as is, where is" on foundation, not in operation.
from Phipps Co. equipment suppliers USA

Specifications

ManufacturerHunter
Year2002
ConditionUsed
Stock NumberCC-153
