1250mm Coil Coating Line: CC-173

Contact us for price

orCall 1-336-597-2370

Description

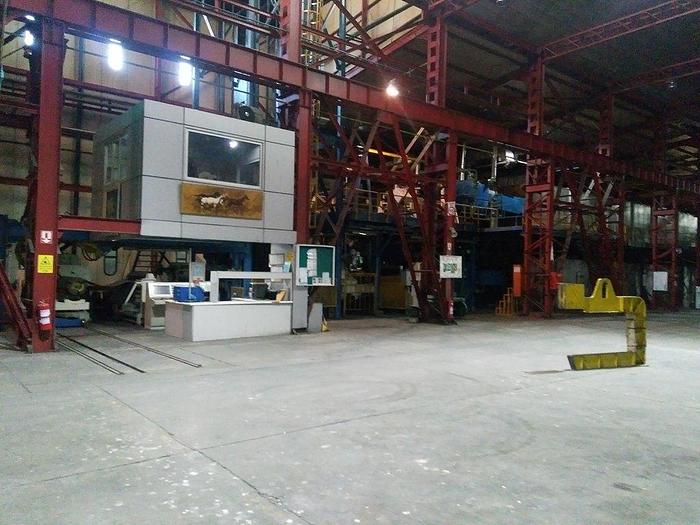

Materials: - Hot Dipped Galvanised Steel / Black Steel / Galvalume / TinPlate / Aluminum Paints: - Polyester, PVDF, PVC Plastisol, Polyurethane - Polyamide, Epoxy, Laquer Condition: - This line is installed on foundation and has been modernized several times. It can paint speciality coatings and products. It includes several important systems like inline dry paint film thickness measuring, etc. This line is not your average paint line ... it has capabilties well above average. Strip Width: - 600mm to 1250mm max (23.6 - 49.2") Strip Thickness: - 0.20 - 1.5 mm (.008 - .060") Line Speed: Coil Size: - ID = 400/508/600mm (15.7"/20"/23.6") - OD = 1400mm (55") - Weight = 10 mtons (22,040 lbs) Equipment - Uncoiler #1 - Coil car #1 - Uncoiler #2 - Coil car #2 - Entry Shear - Stitcher - Bridle 1 (2-Roll AC motor & Gearbox Driven) - Entry Accumulator (Electric motor driven, Capacity = 90 m) - Pretreatment Section (Cleaning & Rinsing, 2 Cleaning Section, 2 Rinse Section, Automatic Dosing & Temp Control) - Chem Coater (chemical treatment) (Roll Applicators = 1+1) (Chromated & Chrome Free) - Bridle 2 (3 Roll AC Motor&Gear Box Driven) - Coating Section (Prime & Finish Coaters) a. S-wrap type Coaters b. 2-Roll & 3-Roll application for Top Side c. 2-Roll Application for Back Side d. 2-Roll Reverse, 3 Roll Reverse with Dr. Blade e. Quick Change for Finish Coater - Primer Oven a. 4 Zones, 40 m long horizontal, Natural Gas Fired Burners 600,000 kCal each, 4 Circulation Fans, Catenary Control, Spray Quench Tank - Bridle 3 (2 Rolls, AC Motor & Gear Boxes Driven) - Finish Oven a. 4 Zones, 40 m long horizontal, Natural Gas Fired Burners 600,000 kCal each, 4 Circulation Fans, Catenary Control, 1 Exhaust, Spray Quench Tank - Bridle 4 (3 Rolls, AC Motor&GearBox Driven) - Exit Accumulator (90 m of strip capacity) - Bridle 5 (2 Rolls, AC Motor&Gearbox Driven) - Exit Shear - Recoiler (10 mtons, 508 mm & 600 mm) - Coil Car - THERMO SCIENTIFIC INLINE DRY PAINT THICKNESS MEASUREMENT SYSTEM (VERY IMPORTANT TO PAINT COST SAVINGS AND QUALITY CONTROL) Other Line Equipment: - Steering Units (5) - Hydraulic Systems Entry, Coating, Exit - Electrical Rooms ( Entry and Exit ) - Operator Panels ( Entry, Coaters, Exit ) - RTO System (Regenerative Thermal Oxidizer) (MEGTEC 45.000 m3/h) - Heat Exchangers ( Air to Air 2 Pcs , Air to Water 1 pc. ) - Fume Exhaust duct work Sold "as is, where is" installed by Phipps Co Equipment Brokers

Specifications

ManufacturerBWG
Year1970
ConditionUsed
Stock NumberCC-173
