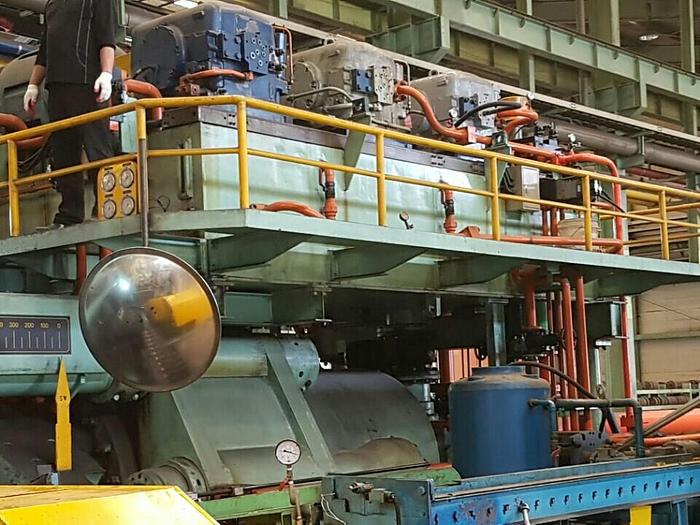

3000 ton Loewy Aluminium Extrusion Line: EX-479

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: Loewy History: - 1975 - New - 2008 - Moved to a new location - 2008 - New electrics/controls - 2014 - Tables overhauled - 2016 - Main pump overhauled - 2017 - Decommissioned and dismantled Billet Size: 9" diam x 29.5" length / 228.6 mm diam x 750 mm length Equipment - Billet Heater: 3-zone Induction type / 4160 V main voltage / 9" x 1500 mm / 3 spare coils - Press: 4-Column Horizontal Hydraulic / 2 spare dummy blocks / 1 spare stem / 1 spare container / 2800 mton main ram power / 60 kW container heater / 12,000 liter oil tank / Single die slide / 460 mm diam die stack max - Water Quench: Deep quench tank + spray, 700 mm wide x 3000 mm long - Runout Table: "Free" roller type, 600 mm x 915 mm x 15,000 mm - Double Puller: 25 hp motor on puller 1 / 25 hp motor on puller 2 - Flying Hot Saw: 750 mm blade diam, 7.5 hp motor - Transfer Table: Conveyor belt type, 1425 mm x 895 mm x 37,200 mm - Cooling Table: Conveyor belt type, 2955 mm x 855 mm x 38,400 mm - Stretcher: 300 mm jaw opening, ___? tonnage - Storage Table: Conveyor belt type, 2010 mm x 865 mm x 38,400 mm - Finish Saw Charge Table: Chain driven, 900 mm x 885 mm x 39,600 mm - Finish Saw: 650 mm diam blades, 7.5 hp motor - Inspection Station: "Free" roll + conveyor belt, 2100 mm x 14,300 mm Sold "as is, where is" EXW dismantled. from Phipps Co. equipment suppliers USA ---------- MORE DETAILED INFO ---------- HYDRAULIC CYLINDER: Main Ram: 1219 x 1675 Side Cylinder: 310 x 203 x 1675 Container Cylinder: 280 x 140 x 450 Shear Cylinder: 228 x 165 x 1000 Die Slider Cylinder: 140 x 80 x 1900 HYDRAULIC CYLINDER POWER: a. Main Ram: - Area: 11,670 cm sq. - Pressure: 240 kgf/cm sq. - Power: 2800 Ton b. Side Cylinder: - Bore: 754.5 cm sq. x 2 = 1509 cm sq. - Rod: 323.5 cm sq. x 2 = 647 cm sq. - Advance: Area: 1509 cm sq. - Pressure: 240 kgf/cm sq. - Power: 362 Ton - Return: Area: 862 cm sq. - Pressure: 240 kgf/cm sq. - Power: 207 Ton c. Container Cylinder: - Bore: 615.5 cm sq. x 2 = 1231 cm sq. - Rod: 154 cm sq. x 2 = 308 cm sq. - Open: Area: 1231 cm sq. - Pressure: 240 kgf/cm sq. - Power: 295 Ton - Close: Area: 923 cm sq. - Pressure: 240 kgf/cm sq. - Power: 221 Ton d. Sealing: Area: - Bore: 923 cm/sq. - Pressure: 210 kgf/cm sq. - Power: 193 Ton e. Shear Cylinder: - Bore: 408 cm sq. - Rod: 214 cm sq. - Down: Area: 408 cm sq. - Pressure: 240 kgf/cm sq. - Power: 98 Ton - Lifting: Area: 194 cm sq. - Pressure: 240 kgf/cm sq. - Power: 46 Ton DIE - STACK: Diameter: 460 x 460 mm OIL TANK SIZE: 12,000 Liters MOTORS: 250 HP (1 Set) 200 HP (3 Set) 150 HP (1 Set) 75 HP (1 Set) 20 HP (1 Set) 7-1/2 HP (1 Set) CONTAINER HEATERS: 60 KW (1 Set) Overall Dimensions: 8,250 W x 11,500 L x 5,150 High BILLET INDUCTION HEATER: Type: Induction Size: 9" x 1500 mm Transformer Section: 3 Zone Main Voltage: 460 V PULLER: Main Voltage: 440 V 60 Hz Type: Double Puller P1 Motor: 19 Kw DC, 25 HP P2 Motor: 19 Kw DC, 25 HP WATER QUENCHING DEVICE: Type: Water Quenching Deep Quenching & Spray Quenching Size: 700 x 3000 Roller Pitch: 550 mm Roller Size: 110 diam x 420 mm MOVABLE HOT SAW: Saw Blade: 750 diam x 110 - 120 Tooth Saw Cutting Size: 250 mm Saw Drive Motor: 5.5 KW 7.5 HP RUN-OUT TABLE: Type: Free Roller Table Size: 600 x 915 x 15,000 Roller Pitch: 500 mm Roller Size: 110 x 450 mm TRANSFER CONVEYOR: Type: Conveyor Belt Table Size: 1425 x 895 x 37,200 Belt Pitch: 1,200 mm Belt Size: 100 x 10T COOLING TABLE: Type: Conveyor Belt Table Size: 2955 x 855 x 38,400 Belt Pitch: 1,200 mm Belt Size: 100 x 10T STRETCHER: Type: Vertical Type Jaw Dimension: 300 mm STORAGE TABLE: Type: Conveyor Belt Table Size: 2010 x 865 x 38,400 Belt Pitch: 1,200 mm Belt Size: 100 x 10T SAW CHARGE TABLE: Type: Chain Drive Type Table Size: 900 x 885 x 39,600 Roller Pitch: 600 mm Roller Size: 110 x 10T x 790 mm FINAL CUTTING SAW: Saw Blade: 650 x 80~100 Tooth Saw Cutting Size: 650 mm Saw Drive Motor: 5.5 kW 7.5 HP INSPECTION TABLE: Type: Free Roller, Conveyor Belt Size: 2,100 x 14,300 mm Roller Pitch: 300 mm Roller Size: 110 x 800 mm Belt Pitch: 1,300 mm Belt Size: 75 x 10T COOLING FAN: Quantity of 101 SPARE PARTS: Dummy: 2 EA Stem: 1 EA Container: 1 EA Billet Induction Coil: 8" x 3 EA

Specifications

ManufacturerLoewy
ConditionUsed
Stock NumberEX-479
