2000 mton SMS Aluminum Extrusion Line: EX-481

Contact us for price

orCall 1-336-597-2370

Description

Manufacture: SMS - Schloemann

History: New 1980
- 1993: Horizontal stem shift added so can extrude long billet
- 1995: New forged back platen AND New forged main cylinder
- 1996: All new hydraulics
- 2005 to 2017: Many small refurbishments kept the press in top condition
- December 2017: Decommissioned and dismantled

Billet Diameter: 8" diam / 203 mm

Billet Length: 39.4" / 1000 mm max

Equipment
OMAV Log Heater and Hot Log Shear: New 1993

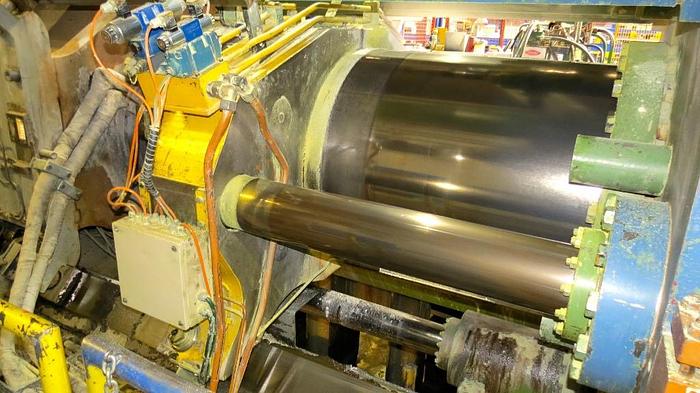

Press:
- 2015 mton horizontal
- 4-column, oil hydraulic
- Spare main cylinder
- New back platen
- 1 stem, fixed dummy block
- 1850 mm stem stroke
- 1100 mm container stroke
- 300 mm/second fast forward/back
- 29 mm/sec extrusion speed
- 14.7 sec dead cycle

Container (2 included):
- Both induction heated
- 1050 mm liner with 210 mm ID
- Old = main unit included
- New = forged main unit

Oil Tank: 8000 liter capacity, HLP 46 oil

Main Pumps (3) - Rexroth A2V500 / Motors - 3 x 160 kW (400 V,50 Hz)

Container Sealing Pump Motor - 15 kW (400 V, 50 Hz)

Oil & Air Heat Exchanger - NOT included

Press Opening - 260 mm diam x 360 mm lateral

Die Slide - 425 mm diam x 450 mm height tool stack

PLC - Siemens S5 with HMI system

Initial Table - With hot saw

Runout Table - With quench and puller

Puller - Double type - 51 m (167 ft) run

Stretcher - 2 heads included

NOT INCLUDED - Cooling tables, finishing saw, tooling, heat exchanger

INCLUDED - EUR 220,000 worth of spares, new main cylinder, back plate, main ram, drawings, etc.

Sold "as is, where is" EXW off foundation, warehouse floor.
- Service to exchange the old cylinder for the new is available thru SMS
- from Phipps Co. equipment suppliers USA

Specifications

ManufacturerSMS
Year1980
ConditionUsed
Stock NumberEX-481
