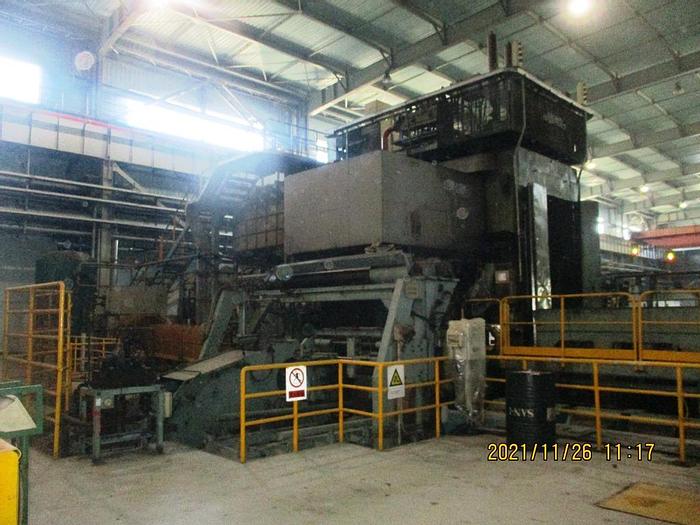

1250mm Mino 4-Hi Reversing Cold Rolling Mill: RM-451

1250mm Mino 4-Hi Reversing Cold Rolling Mill: RM-451

orCall +1 (336) 597-2370

Description

Used 1250mm Reversing Cold Mill for sale:


Manufacture

  • Mino (Italy)
  • new 2004


Strip Width

  • 1250mm max (49.2")


Strip Thickness

  • 2.0 mm to 0.20mm (.080 - .008")


Coil Size

  • ID - 610mm (24")
  • OD - 1800mm (70.8")
  • Weight - 21.8mtons (48,000 lbs)


Line Speed

  • Maximum design: 1100mpm (3,608fpm)
  • Typical use: 700mpm (2,296fpm)


Material

  • Mild carbon steel


EQUIPMENT

Uncoiler

  • 400kw AC motor by Siemens


Mill

  • 2 x 2400kw AC motors by Siemens
  • 4-Hi
  • Single stand
  • Reversing


Rolls

  • Work Rolls = 50 = 380-430mm diam x 1450mm face
  • Backup Rolls = 8 = 1150-1250mm diam x 1400mm face


Recoiler

  • 2 x 1400kw AC motors by Siemens


Weights

  • Mill + support services + spares = 600-650 tons
  • Rolls = 400 tons (all 58 including chocks and bearings)


Sold "as is, where is" on foundation and under power.

Specifications

ManufacturerMINO SPA
Year2004
ConditionUsed
Stock NumberRM-451
