Logemann Scrap Briquetter making 12" x 8" Briquettes: MC-444

Contact us for price

orCall 1-336-597-2370

Description

Manufacture:
- Logemann Brothers
- Model 128-SE

Upgrades:
- This unit was recently Overhauled with:
a. New Hydraulic Lines
b. New Operator Controls
c. New Safety Cage
d. The new controls and lines were moved from the hydraulic pump to outside the new safety cage for safety and operator convenience.
e. New Upgraded Discharge Conveyor Length was added.

Equipment / Specifications:
ENTRY HOPPER

BALE SIZE:
- Variable length x 12" width x 8" height
- Weight = 55 lbs (+/-) at 12" x 12" x 8" bale

BRIQUETTER
- Dimensions: 72" L x 30" W x 30" deep
- Top Opening: 72" L x 30" W
- Total weight of the whole system = +/- 24,000 lbs
- Front-hinged Tamper cover

Baling Cycle:
- 35 seconds (+/-) @ 12” x 12" x 8" bale

Compressions and Hydraulics:
- 1st Compression = One (1) 8” diameter cylinder @ 60 tons force
- 2nd Compression = One (1) 10” diameter cylinder @ 94 tons force
- Cover = One (1) 4” diameter cylinder @ 15 tons force
- Bale Gate = One (1) 4” diameter cylinder @ 15 tons force
- Floor Hopper = One (1) 3.25" diameter cylinder @ 9 tons force
- Weigh Hopper = One (1) 3.25" diameter cylinder @ 1.5 tons force
- Hydraulic Circuit = 88 gpm @ 1000 psi ... and ... 45 gpm @ 2400 psi
- Hydraulic Reservoir = 250 gallons

Motors:
- One (1) 40 hp main pump motor
- One (1) 1.5 hp oil cooler pump
- One (1) 1.5 hp oil cooler fan

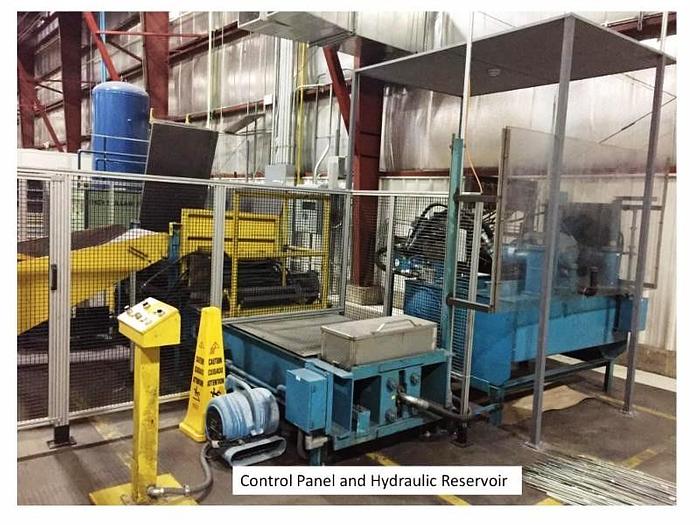

Electrics and Controls:
- Electrics = 460 volts / 3 phase / 60 Hz
- Controls = Electro-hydraulic unit can operate in manual, semi-auto, and automatic modes

Sold "as is, where is" EXW off foundation, loaded on your truck.

Specifications

ManufacturerLogemann
Model128-SE
ConditionUsed
Serial Number14809
Stock NumberMC-444
