1250 mm Coil Coating Line: CC-177

Contact us for price

Asia

orCall 1-336-597-2370

Description

Manufacture
- China 2014 as a galvanizing line
- India 2019 components to convert to coil coating line

Line Specifications
- Material: Low Carbon Steel, GI/GL, Aluminium
- Tensile Strength: 45 Kg/mm2 (Max.), 29 Kg/mm2 (Min.)
- Yield Strength: 32 Kg/mm2 (Max.), 17 Kg/mm2 (Min.)
- Strip Thickness: 0.15 – 0.80 mm
- Strip Width: 700 – 1250 mm
- Flatness: 20 "I" Units
- Surface Conditions: GL/GI, Skin passed, Tension leveled, Edge free from crack, deep scratch and dent, non rusted and without any chemical coating, free from oil and dirt / GR-GI Edge free from crack, deep scratch and dent, non rusted, mill edge
- Camber: 6 mm in 2 m strip length
- Coil Set: 10 mm per meter
- Crossbow: less than 5 mm
- Entry Coil Size: OD - 900-1800 mm / ID - 510-610 mm / Weight - 10,000 Kg. Max.
- Exit Coil Size: OD - 900-1800 mm / ID - 508 mm / Weight - 2500-10000 Kgs

Line Design Specs
- Type - Continuous Paint Coating Line- 2 Coat with 2 Bake type Clean Oven system
- Application: Construction
- Process Speed: 15-50 mpm
- Line Speed: 15-60 mpm
- Threading Speed: 0-15 mpm
- Unwinding - over / rewinding - under
- Winding Tension: 2500 KgF

Coating Conditions:
a. Pre-treatment
- Chemical: No rinse Dry in Place
- Top: 15-20 mg/m2 (1.2 to 2.0 micron)
- Back: Dry 15 - 20 mg/m2 (1.2 to 2 micron)
- Drying temp 70 Deg C

b. Paint Types
- Polyester, RMP, SMP, Epoxy, PVC, PU, PVDF

c. Paint Thickness
- Primer Paint: Top: 3-6 micron / Back: 3-6 micron / 10 micron total for Oven design = 40% max solids by volume
- Finish Paint: Top: 5-20 micron / Back: 3-6 micron / 26 micron total for Oven design = 45% max solids by volume

d. Reference Coating Conditions
- Prime Paint: 10 micron total with 40% total solid contents
- Finish Paint: 26 micron total with 45% total solid contents

e. Type of Coater used:
- Chemical (Passivation): Horizontal roll type
- Primer coater: Reverse double coater, S-Roll type
- Finish coater: Reverse double coater, S-Roll type

f. Curing temperatures
- Pre-treatment: 70 deg C for Chemical treatment
- Prime Paint: 220 – 400 deg C PMT
- Finish Paint: 220 – 400 deg C PMT
- Fuel: Electric

Controls: Digital VVVF AC drive control panel

Hand of Line: LEFT to RIGHT

Productivity: reference strip of 0.45 mm x 1250 mm x 15 mton coil = 48,000 mtons/yr

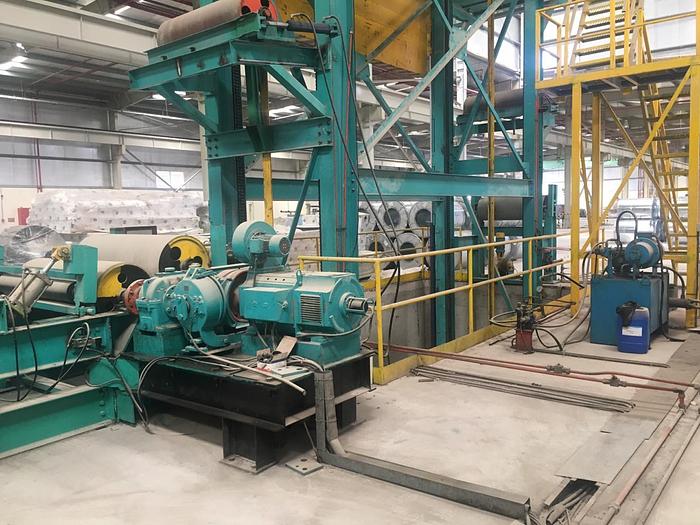

Sold "as is, where is" EXW ... some equipment installed, some equipment in crates.

Specifications

ManufacturerChinese and Indian made
Year2014
ConditionUsed
Stock NumberCC-177
