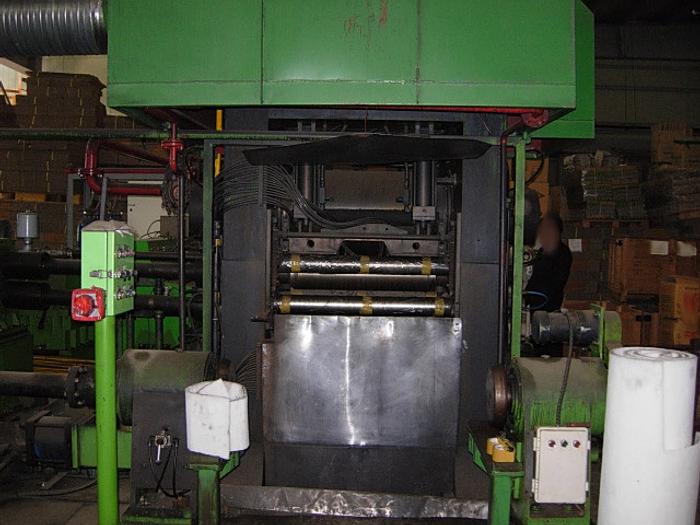

850 mm Kyongil Aluminum Foil Rolling Mill: FM-091

Contact us for price

orCall 1-336-597-2370

Description

Manufacture - Kyongil (Korean) / new 2003 Material - Aluminum alloys (1xxx, 3003, 3004) Web Width - 875 mm max (34.46") Web Thickness - Exit: 15-100 microns (.00059-.0039") Line Speed - 450 mpm max (1476 fpm max) Coil Size - Weight: 2500 kg (5500 lbs) - ID: - OD: 1200 mm max (47.2") Equipment Uncoiler - 55 kW, 700/2000 rpm DC motor Spools - 300 mm OD x 1130 mm face Mill - Work Rolls - Backup Rolls - Drive 300 kW, 700/2000 rpm DC motor - Gauge Control Hydraulic gap control type Recoiler - 55 kW, 700/2000 rpm DC motor Sold "as is, where is" installed, not under power.

Specifications

ManufacturerKyongil (Korea)
Year2003
ConditionUsed
Stock NumberFM-091
