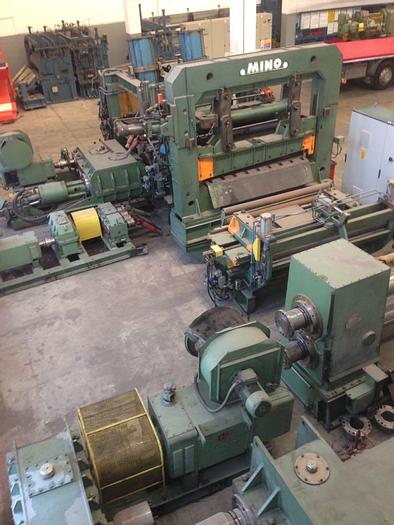

2000mm x 12mm Mino Heavy Gauge Slitting Line (new and refurbished components!): S-302

2000mm x 12mm Mino Heavy Gauge Slitting Line (new and refurbished components!): S-302

orCall +1 (336) 597-2370

Description

2000mm x 12mm Mino Heavy Gauge Slitting Line (new and refurbished components!): S-302


Manufacturer

  • Mino Spa (Italy)


Material

  • Steel - hot rolled, pickled
  • Surface - dry and oiled
  • Tensile strength - 500 N/mm2  up to 10 (12)mm thickness
  • Tensile strength - 600 N/mm2  up to  8mm thickness
  • Tensile strength - 800 N/mm2  up to  6mm thickness


Strip Width

  • 2000mm max


Strip Thickness

  • 2-3 mm up to 10-12 mm


Coil Size

  • ID = 610 and 762 mm
  • OD = 800 - 2100 mm
  • Weight = 32 mtons


Line speed

  • 0 – 75 – 150 m/min


Hand of Line

  • Right to Left


Diameter of mandrels = 325mm


Diameter of new blades = 500mm


Equipment

  • coil car
  • uncoiler
  • pinch roll with anti-break rollers
  • centering roll device
  • slitter
  • scrap chopper
  • recoiler
  • unloading car


Electric characteristic - 380V, 50 Hz

Hydraulic characteristic - 140 bar max pressure / 120 bar nominal pressure


Construction = "heavy-duty" or "mill duty"


Total weight of the line = 230 mtons estimated



MORE DETAIL FORTHCOMING

Specifications

ManufacturerMINO SPA
ConditionUsed
Stock NumberS-302
