60" Monarch-Stamco Aluminum & Stainless Steel Slitting Line with Strand Extensioner: S-301

60" Monarch-Stamco Aluminum & Stainless Steel Slitting Line with Strand Extensioner: S-301

orCall +1 (336) 597-2370

Description

VERY GOOD 60” Aluminum & Stainless Slitting Line with 2 Heads & Herr Voss Strand Extensioner


Manufacture

  • Monarch (Stamco)
  • Herr Voss


Strip Width

  • 24 - 60" (609 - 1524mm)


Strip Thickness

  • Aluminum = .024 - .187" (0.609 - 4.75mm)
  • Stainless = .024 - .135" (0.609 - 3.43mm)


Arbor Size

  • 9 inches (228.6mm)


Material

  • Stainless, Aluminum, Painted Carbon Coil


Coil Size

  • ID = 20" entry and exit (609mm)
  • OD = 72" (1829mm)
  • Weight = 50,000 lbs (22,679 kg)


Line Speed

  • 300 fpm (91.4 mpm)


Line Direction

  • Left to Right


Minimum Slit Width: 2.00" (50.8mm)

Minimum Side Trim: 0.25" (6.35mm)


Complete Line Equipped With:


4 Arm Entry Turnstile

  • Power Rotation


Entry L-Type Coil Car

  • Floor Standing/ Self Contained Hydraulics


Mandrel Uncoiler

  • 4 Leaf Hydraulic Expansion, Sliding Base, Hold Down Roll,
  • Outboard Bearing Support, Water Cooled Brake and Cooler


Fife Edge Control


Paper Winder


Peeler Table


Stamco Entry Section

  • Entry Pinch Rolls (Coated)
  • 3 Roll Breaker (1 over 2)
  • Crop Shear
  • Exit Pinch Rolls (Coated)
  • Edge Guides
  • SPV Applicator
  • Pinch Rolls (Coated)

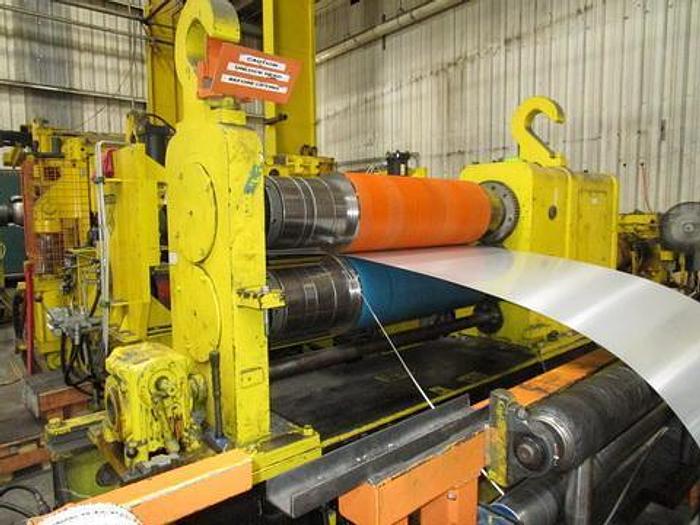

2 Stamco Slitter Heads

  • 9” Diameter Arbors
  • 56” Head and 60” Head
  • Eccentric Arbor Adjustment
  • Hydraulic Locking Heads
  • 100 HP DC Drive
  • 2 Sets of Knives, Rubbers & Spacers
  • Scrap Winders
  • Looping Pit Cascade Rolls
  • Drag Board Tension
  • Tooling Separator Shafts


Herr Voss Strand Extensioner

  • Year 2006/2007
  • Model VKSE 72-1.750-19-7-6HI
  • Hydraulic Feed Up Drive
  • 7 Flights Motorized Back-Ups
  • Sliding Base


Digital Touch Screen Roll Positioning


Allen Bradley Touch Screen Versa View 1500P


Shear Deflector Roll Unit with Pinch Rolls

  • Thickness Capacity: .024” - .250” @ 60,000 PSI Exit Crop Shear Exit Feed Up Table


Recoiler

  • 20” Hydraulic Drum
  • Overarm Separator
  • 2 Speed Gear Box (34.22: 1 and 68.30: 1 Ratios)
  • 100 HP DC Drive
  • Paper Winder


Exit L-Type Coil Car


Floor Standing / Self Contained Hydraulics Coil Holders


Complete Line with Hydraulics, Electrics, Controls Operator Push Button Stands Tooling, Knives, Rubbers & Spacers




Sold "as is, where is" EXW, off foundation, in a USA warehouse.

Specifications

ManufacturerSTAMCO
ModelSlitting Line
ConditionUsed
Stock NumberS-301
