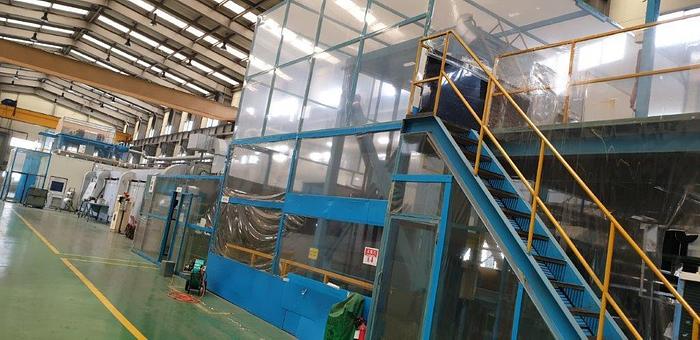

1300mm Aluminum and Steel Coil Coating Line: CC-176

Contact us for price

Roxboro, NC

orCall 1-336-597-2370

Description

Manufacture:
- Hunter / Hyundai Precision Equipment / Behlen, etc.
- New in ____
- Decommissioned March 2019

Material / Use:
- Aluminum and Steel coating
- Construction markets / TV and electronics panels / car battery / etc

Line Design:
- Single coat, 2 heads = both sides of strip can be coated
- Film application to top side

Strip Width:
- Aluminum: 500 - 1300 mm (19.7 - 51.2")
- Steel: 450 - 1219 mm (17.7 - 48.0")

Strip Thickness:
- Aluminum: 0.21 - 1.5 mm (.008 - .059")
- Steel: 0.10 - 0.60 mm (.004 - .024")

Line Speed:
- 70 mpm max (230 fpm)

Coil Size:
- ID: 600 mm uncoiler / 508 mm recoiler
- OD:
- Weight: 10 mtons max (22,040 lbs)
- Typical finished coil: 5 mtons (10,020 lbs)

Equipment:
Uncoiler: Two (2), mandrel type, hydraulic expansion, coil cars
Pinch Roll
Entry Shear
Behlen Strip Joiner
Bridle 1
Entry Accumulator
Chem Coater: vertical
Chem Coater Oven: vertical
Bridle 2
Coater: 2-roll top side head ... and ... 2-roll bottom side head
Coater Oven: 3 zone, natural gas fired catenary
Oven Quench
Regenerative Thermal Oxidizer
Bridle 3
Exit Accumulator
Bridle 4
Top-side film Applicator
Exit Pinch Roll
Exit Shear
Recoiler: One (1), mandrel type, belt wrapper, coil car

Approximate Footprint: 90 m L x 12 m W x 5 m H (with 1/2 of the 10 m accumulators underground)

Strip Cleaning: Stand alone, coil-to-coil line

Sold "as is, where is" EXW on seller's foundation. Dismantling and freight for buyer's account.

Specifications

ManufacturerHunter
ConditionUsed
Stock NumberCC-176
