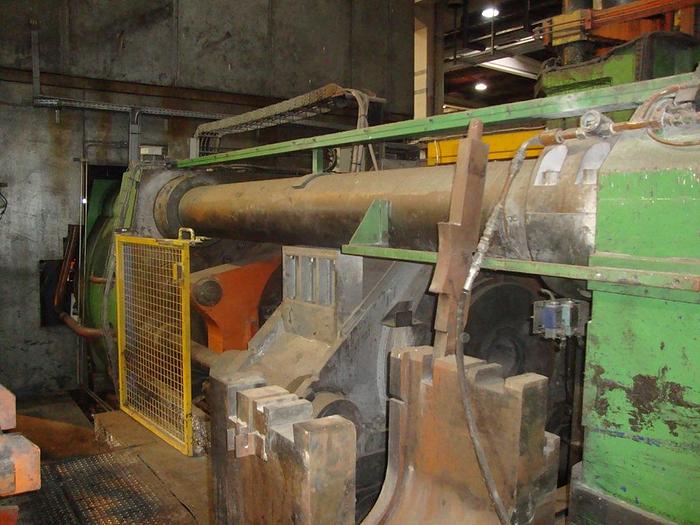

3000 mton Clecim Aluminum Extrusion Profile Line: EX-486
Contact us for price
Manufacturer - Clecim Billet Diameter - 9.5" - Actual = 247.5 mm in cold conditions of PS=57,3 Kg/mm2 - Ideal size of billet for this press is 9’’ for best specific pressure of 68 Kg/mm2 Billet Length - 1100 mm (43.3") Press Design - Front loading / short-stroke / 4 column / horizontal / oil hydraulic Equipment 1. Log Table - 8 meter log / 20 logs max / and 1100 mm billet 2. Log Furnace - natural gas heated - 9.0-9.5’’ - manufacturer AUBURTIN 3. Billet Shear - 120 mton force - manufacturer CLECIM 4. Front Loader - manufacturer CLECIM 5. Press - 3000 mton - manufacturer CLECIM - also modernized by CLECIM 6. Initial Runout Table - 9.4 meters 7. Quench - very strong air cooling - upper + lower + lateral 8. Double-Blade Hot Saw - movable position for fixed cut 9. Puller - double - independent units 10. Runout Table - motorized - 56 meters long 11. Cooling Tables - extracting band table / telescopic band table / traction bench / extracting belt 12. Saw Table - neoprene covered rolls - motorized 13. Finish / Cold Saw - max width 950 mm 14. Automatic Stacker - with automatic cardboard spacing - by OMAV 15. Tool Set = 3 containers, 2 stems, bolster and die holders 16. Aging furnace = NOT included 17. Automation Press and Furnace = SIEMENS S7-400 PLC Profile exit table and traction bench = SIEMENS S5-135 PLC Tables, Cold saw, Stacker, etc = PLC PB400 MERLIN 18. Die Furnace - 6-8 die capacity - Missing Items: - One hydraulic pipe for lateral cylinder - High pressure filters (HP Filters not needed for normal running) - One pair of frequency variation for ventilator Also available at additional cost: - Many die holder and bolster tools Sold "as is, where is" EXW on foundation, not under power. Please request a quotation ... we will send a 24 page document with much detail.
